Fuel tanks play a vital role in ensuring safety across automotive, agricultural machinery, power generation units, and a wide range of industrial equipment. Even a minor welding defect can result in fuel leakage, pressure instability, environmental hazards, and reduced service life. At the same time, manufacturers face constant demands to boost production efficiency, minimize material waste, and maintain strict and consistent quality standards.
Improving fuel tank welding performance is not achieved through a single upgrade. It requires a coordinated approach that includes better equipment selection, tighter process control, improved material handling, increased automation, and proper post-weld inspection. The following sections outline practical, production-oriented strategies that can help enhance welding efficiency while ensuring high-quality output.
1. Design with Welding Efficiency in Mind
Welding efficiency actually starts at the design stage, not on the production floor.
Many inefficiencies and defects originate from designs that are difficult to weld. Fuel tanks often involve curved panels, pressed parts, flanges, and reinforcement structures. When joint alignment is inconsistent, welding becomes slower and more prone to errors.
Key improvements include:
-
Standardizing joint types such as lap, butt, or flange connections
-
Keeping joint gaps within stable tolerances
-
Designing structures suitable for automated seam tracking
-
Avoiding abrupt changes in material thickness
Early coordination between design and manufacturing teams can significantly shorten welding cycles while maintaining structural integrity.
2. Select the Appropriate Welding Process
Common fuel tank welding methods include:
-
MIG (GMAW)
-
TIG (GTAW)
-
Resistance seam welding
-
Laser welding
-
Hybrid laser-arc processes
Each method suits different materials and production scales. For example, resistance seam welding is often ideal for high-volume steel tanks due to its speed and repeatability. Aluminum tanks, on the other hand, may benefit more from MIG or laser-based techniques.
Instead of chasing the “most advanced” solution, manufacturers should focus on the most stable and repeatable process for their specific production needs.

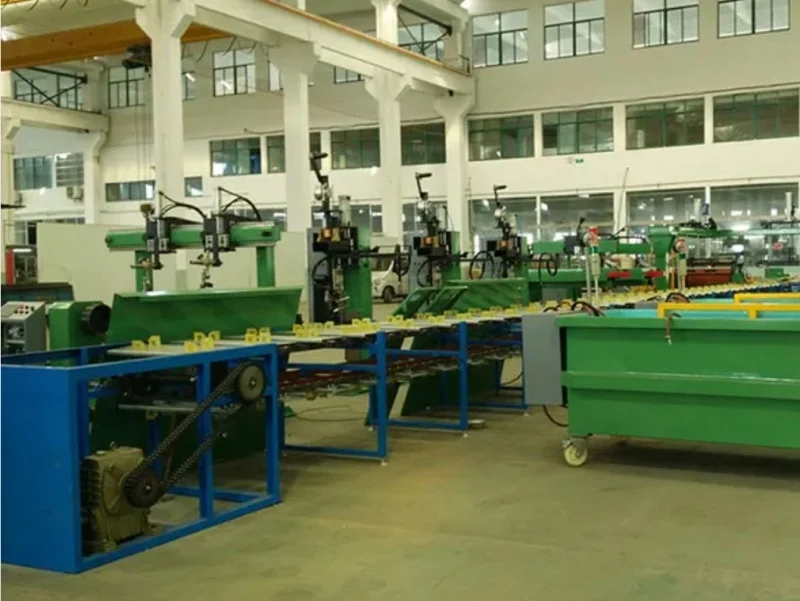

For industrial upgrades, dedicated systems such as fuel tank welding equipment can further improve consistency and reduce manual dependency:
https://www.jsxlmachines.com/Fuel-tank-welding-machines.html
3. Precisely Manage Heat Input
Incorrect heat control is one of the main causes of welding defects.
Excessive heat can lead to:
-
Distortion and warping
-
Burn-through defects
-
Excessive spatter
-
Longer finishing work
Insufficient heat may cause:
-
Poor fusion
-
Weak weld strength
-
Potential leakage risks
Key control variables include voltage, current, travel speed, wire feed rate, and shielding gas composition. Automated welding systems with preset parameter programs help ensure repeatability and reduce operator-related inconsistencies. Pulse welding is especially useful for thin materials, helping minimize deformation while maintaining penetration.
4. Strengthen Fixturing and Clamping Accuracy
Weak or inconsistent fixturing is a hidden cause of production inefficiency.
When components shift during welding, it leads to stoppages, corrections, and inconsistent weld quality. A well-designed fixture system should:
-
Maintain precise joint alignment
-
Accommodate thermal expansion
-
Allow fast loading and unloading
-
Support automation compatibility
Advanced production lines often use servo-controlled positioning systems to ensure consistent seam accuracy and stability.
5. Apply Automation Strategically
Automation does not need to replace every manual task—targeted automation is more effective.
Priority areas for automation include:
-
Long continuous weld seams
-
Repetitive joint structures
-
High-volume standardized tank models
Robotic welding systems provide:
-
Stable arc conditions
-
Uniform travel speed
-
Reduced operator fatigue
-
Predictable production output
Even semi-automated setups with positioning tables can significantly increase productivity in medium-scale operations. A key performance indicator is first-pass yield rather than only total output.
6. Improve Material Flow and Layout Efficiency
Even the best welding equipment cannot compensate for poor workflow design.
Typical bottlenecks include:
-
Delays between forming and welding
-
Inefficient material transfer
-
Poor workstation organization
-
Separation of welding and inspection processes
Using value stream mapping helps identify inefficiencies such as idle time, unnecessary movement, and rework loops. Rearranging production lines or integrating processes like inline testing can significantly reduce total cycle time.
7. Ensure Proper Surface Preparation
Surface quality directly affects weld integrity.
Contaminants such as oil, rust, or oxidation can lead to:
-
Porosity defects
-
Weak bonding
-
Increased scrap rates
Standard preparation practices should include:
-
Degreasing
-
Mechanical cleaning
-
Edge preparation consistency
-
Proper drying before welding
In many industrial sectors, upstream processes like vacuum treatment and insulation handling demonstrate how material preparation impacts final quality. The same principle applies to fuel tank welding—clean, controlled surfaces lead to more stable welds.
8. Introduce Inline Leak Detection
Waiting until final inspection can waste significant time and resources.
Inline testing methods include:
-
Air pressure testing
-
Helium leak detection
-
Water immersion testing
Early detection helps prevent defective units from advancing further in production and allows quick identification of process issues such as parameter drift or equipment malfunction.
9. Improve Energy Efficiency
Energy consumption is now a key factor in manufacturing competitiveness.
Optimized systems help reduce:
-
Idle machine energy usage
-
Excess heat cycles
-
Unnecessary rework
-
Compressed air waste
Energy-efficient thermal systems, similar to those used in motor or transformer manufacturing, show how controlled heating improves both cost efficiency and product quality.
10. Develop Data-Driven Operator Training
While experience is valuable, scalable production requires data-based management.
Modern training systems should include:
-
Digital parameter recording
-
Performance dashboards
-
Standardized operation procedures
-
Scheduled calibration checks
This approach helps identify defect trends, equipment drift, and performance variations, turning welding into a controlled and measurable process rather than purely experience-based work.
11. Implement Preventive Maintenance
Equipment downtime can disrupt production far more than slower welding speeds.
Regular maintenance should cover:
-
Welding torches and consumables
-
Power supply systems
-
Cooling units
-
Fixtures and clamping systems
Industrial manufacturers with strong engineering foundations emphasize long-term machine stability. Applying this mindset ensures consistent output and reduced unexpected failures in welding lines.
12. Maintain a Balance Between Speed and Quality
Focusing only on speed often leads to higher defect rates and rework costs.
True welding efficiency is defined by:
-
High production output
-
High first-pass success rate
-
Low rework ratio
-
Stable energy consumption
Improvements should always be tested gradually, with attention to penetration quality, structural strength, and deformation control.
Conclusion
Optimizing fuel tank welding is a comprehensive process that involves design refinement, precise parameter control, automation adoption, workflow optimization, and strict quality management.
Manufacturers that integrate intelligent equipment, disciplined process control, and systematic inspection methods consistently achieve:
-
Higher productivity
-
Lower defect rates
-
Reduced operational costs
-
Stronger long-term competitiveness
Ultimately, success in welding manufacturing is not about working faster—it is about building a smarter, more stable, and more controlled production system.
